On the Betrayal of Light

The shadows were not right.

On my right sat a Flanders Scientific DM250 hooked up to the source via SDI, bypassing Windows entirely. It displayed the images with rich blacks and atmospheric depth just as I had intended.

To its left sat an MSI MAG 271QP X28 OLED and a Gigabyte M27Q P. Above them on the wall sat an LG OLED HDR TV, all three fed through Windows 11’s HDR pipeline.

Instead of rich blacks or atmospheric depth, the three showed a veil of gray where darkness should have been. The difference was not remotely subtle; it was the difference between a photograph and a photocopy, or perhaps looking through a window at something rather than only being able to read a description of that same something.

For more than a decade I’ve worked with color. I calibrate displays, grade footage, and train my eyes to see differences most people would consider irrelevant. When I say the shadows were wrong, I mean they were wrong in a way that would have been obvious to anyone who bothered to look: lifted by maybe fifteen percent, lacking in weight, rendered hazy and flat in a way that destroyed the atmospheric depth any content designed to be dark should have had. Games meant to be moody were washed out; films meant to be tense became muddy. The OLED panel I bought specifically for its infinite contrast ratio, the ability to produce true black by simply turning pixels off, was being undermined at the signal level by an operating system that had decided it knew better than content creators what their shadows should look like.

This wasn't a bug or configuration error, it was an intentional design decision by Microsoft, embedded within the Windows HDR compositor itself. As a result every piece of SDR content displayed on an HDR-enabled monitor was affected in the same way, and there is no means of disabling or modifying this behavior, nor does Microsoft acknowledge either in its official documentation that the choice was made or that other alternatives exist.

I put together a software patch.

Gloam, which takes its name from Windows’ inability to distinguish between twilight and noon, works as a post-processing step. It intercepts Windows’ already-mangled output signal and applies mathematically precise inverses of those specific manglings, restoring the proper shadow response for HDR content. It applies gamma 2.2 and 2.4 per-monitor, a real night mode for HDR without any of the problems inherent in using existing solutions on high dynamic range displays. It provides perceptual dimming to make evening usage more comfortable for your eyes, per-game picture profiles, drives a colorimeter for measured display calibration that’s verified after installation instead of only assuming to be correct, and it does all this persistently without any flicker or conflicts that would otherwise make such an approach unusable.

Gloam is a translator correcting the mistakes of another translator. It’s an ugly hack that shouldn’t exist but it does, because Microsoft doesn't care.

This is an explanation of what’s wrong with Windows, why it matters, and how to fix it. The math involved is not trivial, but it’s manageable; I’ll give intuitive explanations alongside the formal ones. This is a technical document, but also a chronicle of exasperation; you can’t separate the two. It was that exasperation which led me to investigate, and the investigation which yielded this solution.

I. The Accidental Language of Light

By accident of physics, standardization, and inertia, gamma has become the basis for all digital imaging. To understand what Windows does wrong we must first understand this concept.

An accent is gamma. Rendered game, processed photograph, designed website—in each case the creator speaks in a certain dialect. He or she encodes brightness values on the assumption that they will be decoded later, in playback, according to a known relationship. The dialect has been gamma 2.2 for the past thirty years: a relationship between numbers in files and light emitted from displays. The programmer or artist tweaks the shadows to look right on their gamma 2.2 monitor, writes those values out to a file and trusts that the shadows will look just as he intended them on the viewer’s gamma 2.2 monitor.

The accent exists because old cathode ray tubes had a non-linear relationship between input voltage and output luminance. If you sent them a signal representing 50% brightness, they'd actually emit something closer to 22% of their maximum luminance, following an approximate power law:

\[L = V^\gamma \]

The relation between the light output L of a CRT phosphor and the input signal V can be expressed by the power function \(L = V^\gamma\), in which the exponent \(\gamma\) (gamma) is ordinarily around 2.5 for most phosphor types, describing their nonlinearity as light output devices.¹ However, the gamma value is not an arbitrary design parameter; it derives from the physics of cathode-ray-tube electron guns and must be taken into account by content producers who need to apply inverse functions at the source in order to preserve perceptual accuracy despite downstream nonlinearities. Though based on accidents and expedience, gamma correction works well enough; it has endured for decades. In fact, “gamma 2.2” emerged as an ad hoc standard for computer monitors, representing a compromise value taking into account both CRT nonlinearities and typical viewing conditions.²

Microsoft's critical error, either through ignorance or design, was assuming that content creators work with specifications. They do not (much to my personal exasperations at times). Instead they tweak values until the result looks correct on their own display. A game developer setting the lighting levels in a dungeon doesn't calculate the mathematically correct value for each shadow; she drags a slider until it feels right on her monitor. If her monitor implements gamma 2.2 (as virtually every computer monitor made in the last thirty years has) then her selection of shadow values implicitly assumes gamma 2.2 decoding on playback.

That’s what Windows breaks.

II. The Dead Spec

A 1996 agreement between HP and Microsoft, sRGB was created to impose some sanity on the consumer digital imaging market. It defined a color space by specifying three primary colors and a white point, but it also defined how to map code values to luminance by means of a transfer function.

The sRGB transfer function is actually a little more elaborate than a simple 2.2 exponent: there’s also a linear section near zero, for numerical stability with eight-bit integers; beyond that it’s a 2.4-power function, with fudge factors to make the two sections join smoothly together.³ It looks like this:

\[L = \begin{cases} V / 12.92 & \text{if } V \leq 0.04045 \\ \left(\frac{V + 0.055}{1.055}\right)^{2.4} & \text{if } V > 0.04045 \end{cases} \]

It’s an exchange rate that varies with the amount being converted. For large transactions (bright values), sRGB and gamma 2.2 use nearly the same rate, agreeing on how many dollars (units of light) to buy with a given number of pesos (signal values). But for small transactions (shadow values), they use different rates, with sRGB giving you more dollars per peso than gamma 2.2.

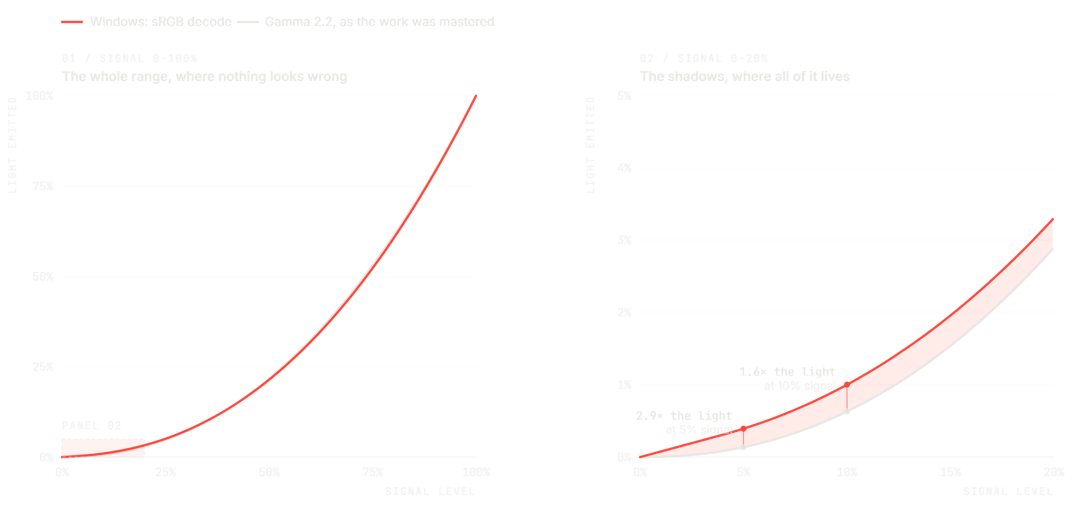

How much more? At the 10% signal level, which corresponds to deep shadow in most images, sRGB produces almost 60% more light than gamma 2.2 would; at the 5% level it produces almost three times as much. The difference diminishes through the midtones and disappears in the highlights, but is concentrated where we most need darkness: in the shadows that give an image its atmospheric depth; in the blacks that give weight and substance to a picture; in the darks that video games and films use to create mood and tension.

For thirty years now, Windows has operated with two different transfer functions: a de jure piecewise sRGB and a de facto gamma 2.2 that the hardware actually implements. The specification was acknowledged in documents but universally ignored in silicon: virtually no monitor implements piecewise sRGB. Instead, it implements gamma 2.2, which is what the hardware naturally provides and what the industry standardized on long before sRGB was published. Nobody cared because monitors ignored the specification anyway, so the two functions were different but irrelevant.

Then came HDR, and Windows finally began to respect its own spec.

III. The HDR Pipeline and Its Discontents

With HDR enabled in Windows 11, the Desktop Window Manager (DWM) becomes a critical component of the display pipeline. It acts as an intermediary between apps and your HDR panel, taking in content from windows, translating it into a common format for compositing before sending the final image to be displayed on screen.

For native HDR content, this translation is straightforward. However, the majority of content remains SDR: websites, desktop applications, older games, photographs. This must be lifted into the HDR space, which requires a decision on how to interpret the SDR values.

They chose to view them through sRGB-tinted glasses.

The DWM decodes SDR content using the piecewise sRGB curve, lifts it into a linear light space scaled to your configured “SDR Content Brightness” level, and then re-encodes it using the ST.2084 Perceptual Quantizer (PQ) curve for HDR output.⁴ Each step of this process follows from a mathematically rigorous specification, and the end result of all that spec-compliance is that shadows look like garbage.

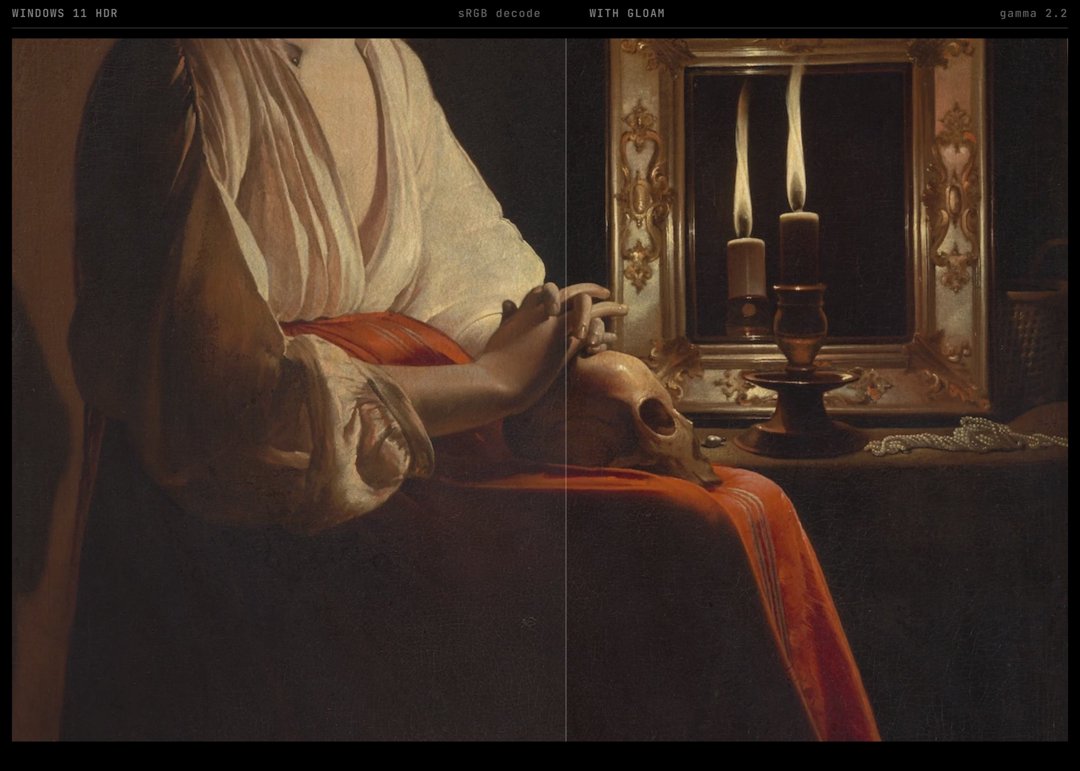

Because it was not made for sRGB decoding. The game developer, the photographer, the web designer worked on gamma 2.2 monitors, so their shadow values assume gamma 2.2 decoding. When Windows decodes those same sRGB values it produces more light in the shadows than the creators intended. The dungeon that was supposed to be dark becomes hazy, atmospheric fog that was supposed to suggest depth is now an even wash. True blacks OLED technology enables become filled with phantom gray.

I first thought I had misconfigured something, having observed this on three HDR enabled displays all showing the same lifted shadows with my SDI connected color critical Flanders (incidentally also an OLED), displaying reality, alongside them. I went down a rabbit hole of display settings, driver control panels, monitor OSD menus, calibration software that produced results that drifted and shifted, never stabilizing. I discovered connecting all three Windows displays simultaneously causes the system to seize, screens flashing on and off in a cascade that can only be resolved by forcing shutdown. I was frustrated. Deeply frustrated really and so I decided to put some math together to handle this translation properly.

IV. The Correction

I was not the first to diagnose it. Dylan Raga spotted that sRGB vs gamma-2.2 mismatch in the Windows HDR compositor and published a corrected ICC profile to fix it; Gloam began as a fork of his work, but has grown into something more.⁵ The diagnosis is the hard part (all due respect to Dylan who saved me enormous amounts of time); what follows is built on top of that realization.

Fix what Windows broke, then do it right.

Gloam produces a look-up table, a LUT, that says "when you see X, output Y." Windows has computed a PQ value for each shadow level that corresponds to sRGB. The LUT changes the output so that Windows will send a PQ value for each shadow level that corresponds to gamma 2.2 instead of sRGB. The display then converts the PQ value into light, and the shadows are fixed.

Five steps, the math. For those who would rather not wade through symbols and signs there is an alternative: picture a chain of translators.

1. Windows encoded its linear light values, the incorrect ones, using the ST.2084 PQ curve. Decode this first, to recover what Windows thought the light should have been.

2. Windows assumed the original content was sRGB-encoded. Reverse that by applying the sRGB encoding function; in essence, ask what input value would have produced this output under sRGB decoding.

3. With the original signal value reconstructed, decode it using gamma 2.2 (or gamma 2.4 for dark-room viewing), which is what the content actually expected.

4. Re-encode the corrected linear light value back into PQ for the trip to the HDR display.

5. Above the SDR range, blend smoothly toward identity, so true HDR content is left untouched and only the SDR region is corrected.

HDR's defining feature, its expanded luminance range (up to 1,000 or even 4,000 nits for modern displays, compared to the mere 80–480 nits of SDR content), makes this last step particularly important. Some nominally "SDR" applications actually exploit the additional headroom available in HDR displays for bright highlights and user interface elements. If we applied our shadow correction to these bright values, they would be inappropriately crushed. Instead, we want to smoothly blend from full correction at the SDR white level to no correction as luminance increases toward the HDR peak.

This correction curve is computed at 1024 points per channel and then resampled onto the 256-entry hardware gamma ramp that every GPU exposes. Since a display's white level is part of its transfer function, each monitor gets its own curve. Early builds of Gloam shelled out to ArgyllCMS's dispwin utility to load the curve onto the hardware; now it writes the ramp directly through the same Win32 call, keeping dispwin as a fallback for display drivers that refuse it.⁶

The correction persists until something else overwrites the hardware gamma ramp, and things do: fullscreen games and driver events silently reset it. So Gloam reads back the hardware state, verifies the curve it set is still in place, and restores it when it has been stomped, besides reapplying automatically at startup, on display changes, and on resume from sleep.

V. Beyond Shadows: Night Mode and Perceptual Dimming

The gamma correction addresses the core issue, yet a screen operates within an environment, and environments vary. The program enhances the primary correction in multiple ways, each responding to real-world shortcomings of other software.

Night mode means warming your display’s color temperature in the evening to cut down on blue light. Our circadian rhythms are attuned to the changing color temperature of natural daylight, warm at sunrise and sunset, neutral around midday, cooler in overcast conditions. Blue light exposure in the evening inhibits melatonin secretion and disrupts healthy sleep-wake cycles. Windows provides a "Night Light" setting for this, while third-party solutions such as f.lux have long been available.

These SDR-oriented tools were never designed to operate in HDR, so it should come as no surprise that they produce aberrations on HDR panels. When I tested f.lux, Lightbulb, and Windows Night Light with my HDR displays, the results varied from useless to psychotic. The colors shifted in directions they weren’t supposed to go, luminance relationships were warped in ways that made the images look damaged rather than warmed. These tools work by manipulating gamma tables or using compositor overlays, but the internal conversions of the HDR pipeline interact with these manipulations in unintended ways.

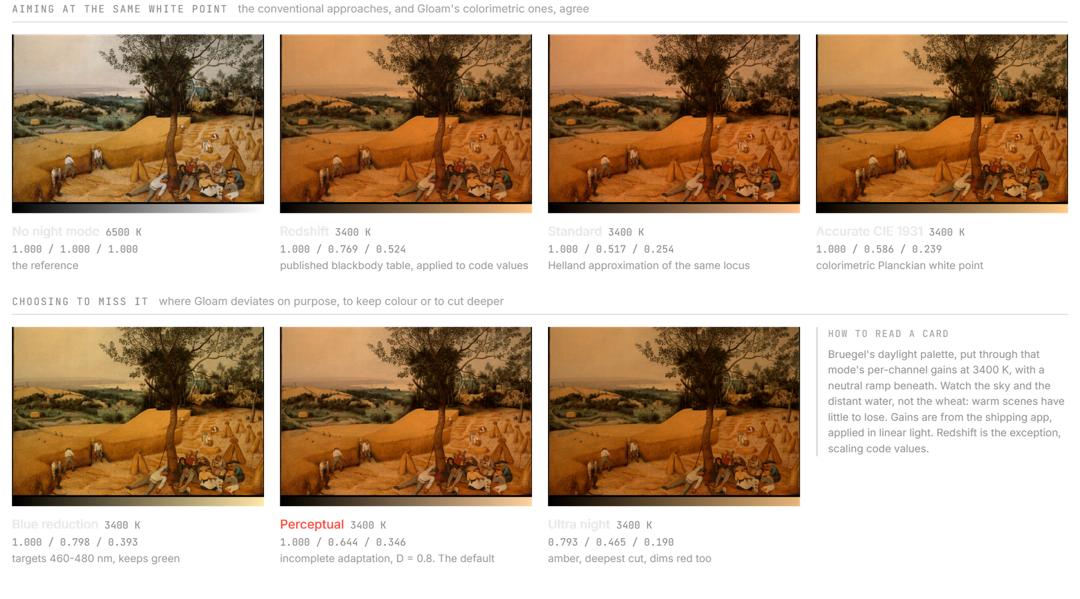

By generating the LUT with an integrated warming computation instead of a post-process overlay, Gloam can compute the shift as chromatic adaptation: moving white point in CAT16 cone space, with an explicit degree of adaptation,⁷ similar to the way the human eye adapts to warmer lighting conditions. Most tools warm an image by cutting the blue channel, but Gloam's adaptation keeps neutrals gray even at candle temperatures—while a cut drags them toward muddy green-brown. The adjustment is carried in high-precision floating point through to quantization, preserving shadow integrity despite the warming. Transitions are paced in mired space, a perceptually uniform scale for color temperature steps—fades from 6500 K to 2700 K move at a constant apparent rate, avoiding the crawling and lurching of fixed-step fades. Geographic coordinates enable solar position calculations for automatic transitions tracking the actual sun, not rigid schedules oblivious to seasonal variation. For deepest evening settings Gloam's Ultra Night profile can compute warmth spectrally, and accept a measured sample of your own panel's emission spectra. (This is what I use and it's hard to go back to anything else once you get used to it).

Simply reducing the brightness of an OLED display by multiplying all pixel values with a scaling factor is not a viable solution because it crushes shadow detail before meaningfully dimming the highlights. Perceptual dimming seeks to avoid this problem. OLED displays can be uncomfortably bright in low-light conditions despite their ability to render perfect blacks, the technology’s searing highlights prove problematic.

The eye’s response to light is compressive, not linear: equal increments of luminance are perceived as progressively smaller changes in brightness. By implementing perceptual rather than physical dimming, this software preserves shadow separation while reducing overall luminance,⁸ much as an orchestra turned down proportionally keeps its quiet passages audible while the fortissimos become tolerable. The same principle is employed in professional photo editing software to adjust the exposure of images, and here it is applied to real-time display output.

VI. The Meter Has the Last Word

The reference monitor is where I began, and it would be dishonest to end this essay without circling back. A correction derived from mathematics is a model, and models drift away from reality in all the usual ways. Panels age, factory calibrations lie, two units of the same model will disagree with each other. Gloam has a measurement loop built into it, so you can connect a colorimeter and drive ArgyllCMS through a full characterization of the panel, in SDR or HDR (it measures patches at known positions on the PQ curve rather than trusting what the display claims about itself). This correction gets baked into an MHC2 transform in a Windows color profile, which the Windows compositor reads. This means it will persist as a system level setting and work with live gamma curves, night mode etc rather than against them. Gloam applies the profile and then re-measures the panel through it, so that every number in the final report is a post-install measurement.

VII. The Gap Between Specification and Practice

The Windows HDR debacle has a broader lesson, about standards and specifications, about the difference between what they say and what practitioners do.

It was published in 1996, this sRGB thing. For almost thirty years now it has specified a transfer function that virtually no display actually implements and virtually no content creator actually targets. The specification exists but reality ignores it; everything works because the mismatch is consistent - gamma 2.2 monitors receiving gamma 2.2-mastered content through a pipeline that nominally calls itself "sRGB" but actually behaves otherwise. The lie was persistent and I suppose persistence is a kind of stability and a stable lie cannot be told from truth.

Then, in the name of correctness, Microsoft decided to enforce the spec. They built an HDR compositor that implemented sRGB exactly as described in the document. And suddenly every piece of SDR content looked wrong: every game, every photograph, every website that had been lovingly mastered over the course of three decades on displays with a gamma of 2.2. It looked wrong not because the content had changed, and it looked wrong not because displays had changed, but because Microsoft had corrected a bug that was, in classic Microsoft fashion, actually a feature: they'd fixed something that wasn't broken, applied a spec to a world that had evolved around ignoring it.

Gloam is itself a lie: it pretends Windows did not do what Windows did. It's a counter-lie that restores the old regime of mutual deception. The LUT says "when you see this value, output that value instead," and means "forget what Windows just told you." A hack in the purest sense, working around the system rather than through it, succeeding by subversion instead of cooperation.

Microsoft should expose a setting: sRGB for content that theoretically targets it, gamma 2.2 for the overwhelming majority that assumes it, and gamma 2.4 for professional dark-room environments. Technically this is easy to do since the parameter already exists in their pipeline, it merely needs a control surface. But institutional inertia is powerful and those who understand the problem rarely have the organizational capital to ship solutions.

Until such a fix becomes available, if ever, we must make ourselves into the users that consumer operating systems are designed to protect us from being. We must learn how to calculate transfer functions, generate LUTs, and encode PQ; we must compile tools, create profiles, and write values to hardware registers that Microsoft would rather we not touch.

Gloam is free and MIT licensed. Get it at getgloam.org or on GitHub at github.com/halideworks/gloam. The whitepaper documents the mathematics in detail, including what the correction can and cannot claim. My displays now show shadows that are genuinely black, color temperatures that smoothly shift with the sun, and brightness levels that I can tolerate in the evening. The light is true at last, because I wrote software to correct for the pipeline's lies.
